SMC

DxpLOGGER × Air Management System

Visualization of air pressure, temperature, and consumption with OPC UA

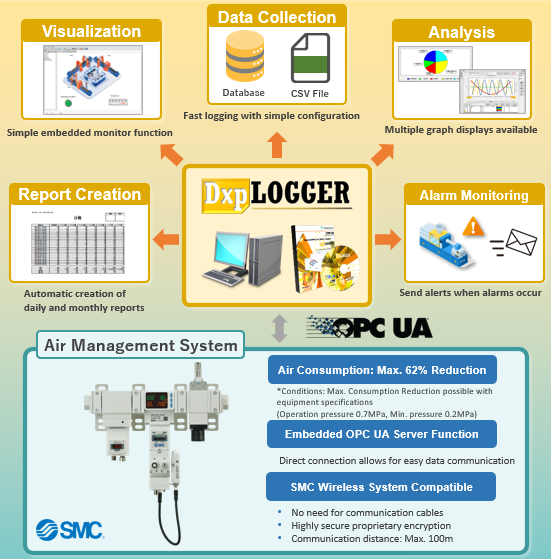

Collect AMS airflow, pressure, and temperature data in DxpLOGGER via OPC UA, facilitating data logging, simple monitoring, and report creation with ease.

Release of Sample File for AMS Connection

It is possible to obtain a sample file of the AMS connection on FAWEB. The sample file includes base configuration for communication/loggging/alarm/monitoring settings. By using the sample file, data transfer is possible with minimal required changes.

The demo version of DeviceXPlorer Data Logger and the sample file can be downloaded here (Download, Patch, Manual).

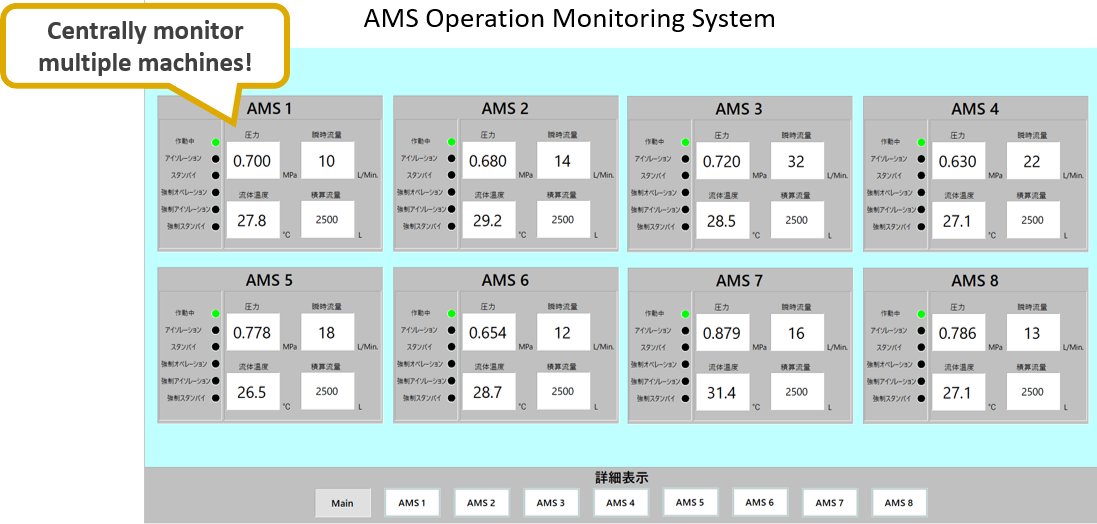

Example Monitor Screen

DeviceXPlorer Data Logger

DeviceXPlorer Data Logger is an OPC Supported All-In-One software package including functions such as logging (periodic/event), alarm monitoring, real-time/historical trend, and report creation in various formats. Collection and monitoring of equipment data can be performed at a low cost.

Details about DeviceXPlorer Data Logger can be found here (DxpLOGGER Product Information).

Air Management System

Air Management Systems monitor the production standby state (when production is stopped) and automatically reduces air pressure to limit unnecessary air consumption. It has communication functions such as OPC UA and Ethernet/IP, and also supports wireless communication.

Details about Air Management Systems can be found here (External Link).
