Specifications
System Requirements
* You can scroll this table sideways.
| Computer | Windows OS |
|---|---|
| OS*1 | Windows 10 (20H2) |
| Windows 10 IoT Enterprise | |
| Windows 10 Enterprise LTSC 2019 | |
| Windows 8.1 | |
| Windows 7 | |
| Windows Server 2019 | |
| Windows Server 2016 | |
| Windows Server 2012 (R2) | |
| Windows Server 2008 (R2) | |
| HD | 20MB or more*2 |
| Memory | 1GB or more |
| Framework | .NET Framework 4.7.2 or more |
| Display | XGA (1024 x 768) resolution display or more |
*1 In Windows 10 Home Edition, Windows Update type is fixed at "Current Branch," where updates are performed automatically. As this may cause issues with the OS, Pro Edition or above is recommended.
*2 Installation disk space for .NET Framework 4.7.2 and hard disk for collecting data is needed. 2GB or more is recommended.
Main parameters
General specifications
* You can scroll this table sideways.
| I/F | OPC-UA,OPC-DA2.05A interface |
|---|---|
| Communication | Up to 128 OPC Servers |
| Auto-execution | Available |
| Diagnostic | Diagnostic display, Message display |
| User right setting | Operation permission settings for each user |
| Max. Tags | 100,000 tags |
Functions
* You can scroll this table sideways.
| Functions | Engineering value conversion |
|---|---|
| BCD conversion | |
| Multiplying factor calculation | |
| Logarithm calculation | |
| Logging for amount of change | |
| Square root extraction | |
| Power factor | |
| String table setting | |
| Allowable rate of change | |
| Number of significant figures |
Data collection
* You can scroll this table sideways.
| Method | Periodic logging, Event logging |
|---|---|
| Cycle | Between 50 milliseconds and 24 hours |
| Points | 65,536 points per system (Max. 512 points x 128 groups) |
| Format | BCD conversion to BIN, Character string, Logarithm logging, etc. |
| Save format | CSV, ODBC (SQLServer, Microsoft Access DB, Oracle, PostgreSQL) |
| Main function | Cycle logging, Time Log, Report (Daily, Monthly, Yearly) |
| CSV Logging Report | |
| FTP | |
| Base Time Log, Data Change Log, Stop data logging | |
| Event collection | |
| Trigger setting | |
| Handshake | |
| File division | |
| Offline buffering | |
| Write cache | |
| Retention period specified |
OPC Interface
* You can scroll this table sideways.
| OPC UA Client Interface | OPC UA Client Interface (Data Access) |
|---|---|
| OPC DA Client Interface |
[OPC Server Objects] |
|
[OPC Group Objects] |
|
|
[Client Side Interface] |
|
| Data Type | VT_BOOL (Boolean type) |
| VT_I1 (8-bit signed integer type) | |
| VT_UI1 (8-bit unsigned integer type) | |
| VT_I2 (16-bit signed integer type) | |
| VT_UI2 (16-bit unsigned integer type) | |
| VT_I4 (32-bit signed integer type) | |
| VT_UI4 (32-bit unsigned integer type) | |
| VT_R4 (32-bit signed real type) | |
| VT_I8 (64-bit signed integer type) | |
| VT_UI8 (64-bit unsigned integer type) | |
| VT_R8 (64-bit signed real type) | |
| VT_BSTR (character string type) |

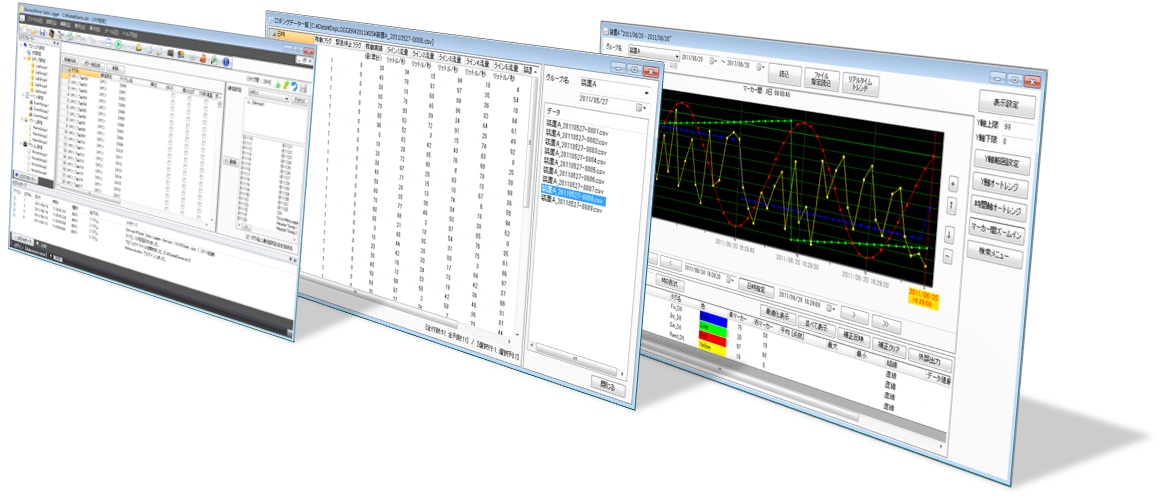

View
* You can scroll this table sideways.
| View format | Spreadsheet |
|---|---|
| View unit | Group name, Logging date |
| Extraction condition | Select value, range |
| Export file | CSV file, XLS file |
Trend graphs
* You can scroll this table sideways.
| View format | Real-time trend, Histrical trend |
|---|---|
| Graph | Simultaneous display of up to 64 graph screens *3 |
| Line | Max. 512 lines |
| Variety | XY Plot, Step Graph, Bar Graph, Area Graph, Operation Graph, Pie Chart, Stacked Bar, Pareto Chart, Logarithmic Graph |
| View unit | Group name × Logging date, File specification |
| Export format | Print out graph, File export (picture/ CSV/ Excel) |
| Main funtion | Optimize view (same range view) |
| Side by side | |
| Search (Specified, Maximum, Minimum) | |
| Marker | |
| Calculate between markers (Average, Maximum, Minimum) |
Alarm
* You can scroll this table sideways.
| Monitoring cycle | Between 50 milliseconds and 24 hours |
|---|---|
| Points | 131,072 (Max. 1,024 points x Max. 128 Groups) |
| View format | Alarm summary, Alarm history |
| Alarm condition | Value comparison, Tag data comparison, AND/OR comparison |
| Recorded | Date of alarm occurrence, Recovery date, Data value, Comment, Alarm level |
| Export format | CSV file, XLS file |
Action
* You can scroll this table sideways.
| Execution | Execute user program, Write value to Tag, FTP file operation |
|---|---|
| Batch file execution | Specified Date, Cycle, Trigger |
| Writing | Heartbeat signal, Increment value, Decrement value, Fixed value (numeric and tag value), Time (year, month, day, hour, minute, second) |
| Condition | Process cycle between 1 second and 24 hours |
| Points | Max. 128 Groups |
| (1 program and 10 Write values per group) | |
| FTP | FTP file upload/ download/ delete |
Recipe
* You can scroll this table sideways.
| Points | 128 groups (10,000 tags x 3,000 recipes per group) |
|---|---|
| Cycle | Between 50 milliseconds and 24 hours |
* You can scroll this table sideways.
| Send e-mail | Alarm on/off |
|---|---|
| Setting | 16 groups (Max. 16 e-mail addresses per group) |
Monitor *4
* You can scroll this table sideways.
| Item | 8,192 (Max 128 tags x 64 Groups) |
|---|---|
| SCADA Monitor Cycle | Between 50 milliseconds and 24 hours |
*3 The 64-bit version has a maximum of 64 graph displays, and the 32-bit version has a maximum of 16 graph displays.
*4 This feature is only available in Enterprise Edition (DXPLOGV3EP).
