Normal Tag(Not array type)
We register the tags of the same number as the accessed point for PLC, and we measure the communication performance of SyncWrite, SyncRead,AsyncRead, AsyncWrite and DataChange.
In case of SyncWrite, SyncRead, AsyncRead, AsyncWrite, we measured the time between requesting to DeviceXPlorer from OPC Client and receiving results from it.
In case of DataChange, we measured the interval of DataChange event as DeviceXPlorer's update time is 50msec.
Communication performance is defined as average time of ten times measurement.
PC specification
* You can scroll this table sideways.
OS | Windows 7 Ultimate 32bit OS |
---|---|
CPU | Intel(R) Core2 Duo CPU E8400 @3.00GHz 2.99GHz |
Memory | 2.00GB |
OPC Server | DeviceXPlorer OPC Server Ver4.2.0.2 |
OPC Client | OPCClient sample VcSampleOpc(C#) |
Cable | 100BASE-TX cross cable connecting directly |
OPC Server setting
* You can scroll this table sideways.
Protocol Timer Tick | 10msec |
---|---|
Timer Tick for Async Update Mode | 10msec |
Multi Access Mode | Enable |
Multi Access for Snyc Asnyc | Disabled |
Async Update Mode | Disabled |
PLC setting
* You can scroll this table sideways.
CPU | Q06UDHCPU(MELSEC) |
---|---|
Communication Unit | F3LE01-5T |
Register | D0-D8191 |
Max scan time | 0.06msec |

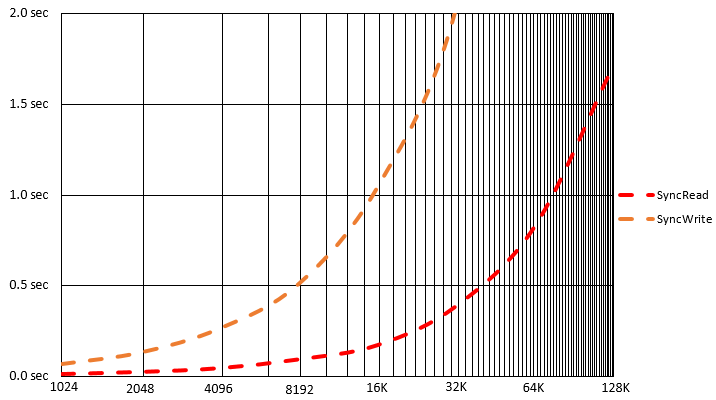

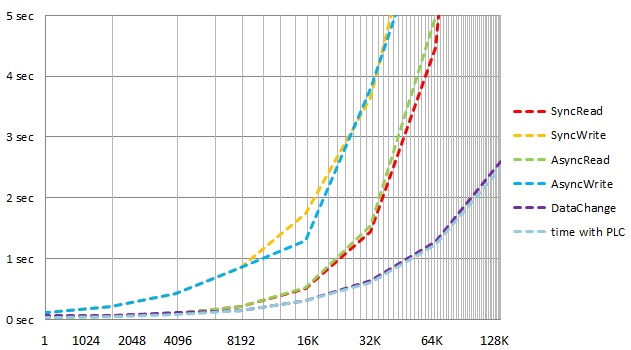

Communication Performance
≪Average≫
(sec)
* You can scroll this table sideways.
1 | 1024 | 2048 | 4096 | 8192 | 16K | 32K | 64K | 128K | |
---|---|---|---|---|---|---|---|---|---|
SyncRead | 0.010 | 0.029 | 0.056 | 0.104 | 0.213 | 0.510 | 1.453 | 4.475 | 15.906 |
SyncWrite | 0.011 | 0.119 | 0.212 | 0.417 | 0.852 | 1.741 | 3.644 | 7.925 | 18.585 |
AsyncRead | 0.011 | 0.030 | 0.052 | 0.104 | 0.205 | 0.518 | 1.549 | 4.985 | 18.052 |
AsyncWrite | 0.010 | 0.112 | 0.213 | 0.425 | 0.860 | 1.173 | 3.792 | 6.958 | 21.139 |
DataChange | 0.060 | 0.060 | 0.060 | 0.119 | 0.148 | 0.310 | 0.636 | 1.276 | 2.604 |
Communication time with PLC | ---- | 0.031 | 0.047 | 0.078 | 0.141 | 0.307 | 0.611 | 1.235 | 2.487 |
Results
In case of SyncRead/AsyncRead, it is possible to get 16,000 words per sec.
In case of SyncWrite/AsyncWrite, it is possible to get 8,000 words per sec.
In case of DataChange, it is possible to get 50,000 words per sec. It is the time as same as communication time with PLC.
Comment
*The difference of communication time with PLC and measuresing time is based on the internal-processing of DeviceXPlorer.
*You can calculate OPC-Interface processing time of other PLCs, it is to add communication time with PLC and measuring time.
*You can see Other PLCs communication time in the link of the lower side.
[Jun 2010]
Array Tag
We register one array tag of the same number as the accessed point for PLC, and we measure the communication performance of SyncWrite, SyncRead, AsyncRead, AsyncWrite and DataChange.
In case of SyncWrite, SyncRead, AsyncRead, AsyncWrite, we measured the time between requesting to DeviceXPlorer from OPC Client and receiving results from it.
In case of DataChange, we measured the interval of DataChange event as DeviceXPlorer's update time is 50msec.
Communication performance is defined as average time of ten times measurement.
PC specification
* You can scroll this table sideways.
OS | Windows 7 Ultimate 32bit OS |
---|---|
CPU | Intel(R) Core2 Duo CPU E8400 @3.00GHz 2.99GHz |
Memory | 2.00GB |
OPC Server | DeviceXPlorer OPC Server Ver4.2.0.2 |
OPC Client | OPCClient sample VcSampleOpc(C#) |
Cable | 100BASE-TX cross cable connecting directly |
OPC Server setting
* You can scroll this table sideways.
Protocol Timer Tick | 10msec |
---|---|
Timer Tick for Async Update Mode | 10msec |
Multi Access Mode | Enable |
Multi Access for Snyc Asnyc | Disabled |
Async Update Mode | Disabled |
PLC setting
* You can scroll this table sideways.
CPU | Q06UDHCPU |
---|---|
Communication Unit | F3LE01-5T |
Register | D0-D8191 |
Max scan time | 0.06msec |

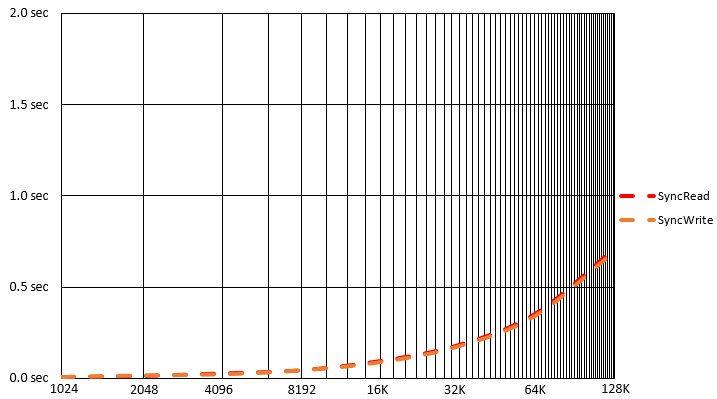

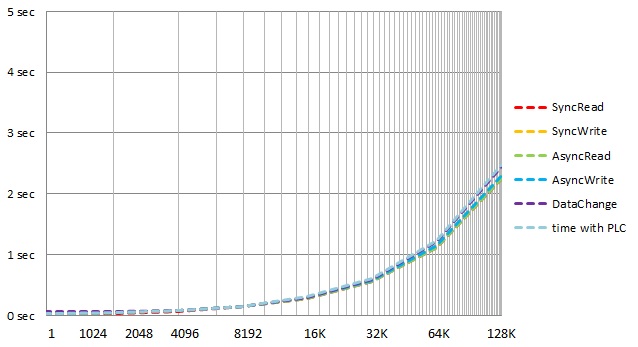

Communication Performance
≪Average≫
(sec)
1 | 1024 | 2048 | 4096 | 8192 | 16K | 32K | 64K | 128K | |
---|---|---|---|---|---|---|---|---|---|
SyncRead 読出 |
0.011 | 0.024 | 0.038 | 0.069 | 0.140 | 0.283 | 0.558 | 1.124 | 2.252 |
SyncWrite | 0.011 | 0.025 | 0.040 | 0.080 | 0.145 | 0.287 | 0.574 | 1.151 | 2.303 |
AsyncRead | 0.009 | 0.028 | 0.047 | 0.075 | 0.138 | 0.281 | 0.563 | 1.124 | 2.250 |
AsyncWrite | 0.010 | 0.029 | 0.043 | 0.075 | 0.145 | 0.286 | 0.575 | 1.149 | 2.094 |
DataChange | 0.059 | 0.060 | 0.061 | 0.077 | 0.139 | 0.293 | 0.596 | 1.207 | 2.443 |
Communication time with PLC |
---- | 0.031 | 0.047 | 0.078 | 0.141 | 0.307 | 0.611 | 1.235 | 2.487 |
Results
In the array type, any OPC-Interface can get 50,000 words per sec.
An internal load is faster than the case of normal tags, and it is understood to communicate at a near speed at the communication time with PLC.
Comment
*The difference of communication time with PLC and measuresing time is based on the internal-processing of DeviceXPlorer.
*You can calculate OPC-Interface processing time of other PLCs, it is to add communication time with PLC and measuring time.
*You can see Other PLCs communication time in the link of the lower side.
[Jun 2010]
