Performance

MP2000 series Ethernet connection

Add array OPCItems as Advise from a OPC Client.
It is measured reading time from added OPCItems. Communication performance is defined as average time of ten times measurement.
This time means to read the value of a continuous area of the device.

PC specification

* You can scroll this table sideways.

OS Windows 7 Professional 32bit OS
CPU Intel(R) Core(TM) i7 CPU 860 @2.80GHz
Memory 3.00GB
OPC Server DxpSERVER OPC Server Ver5.0.1.1
OPC Client OPCClient sample VcSampleOpc(C++)
Cable 100BASE-TX cross cable connecting directly

OPC Server setting

* You can scroll this table sideways.

Protocol Timer Tick 10msec
Timer Tick for Async Update Mode 10msec
Multi Access Mode Enable
Multi Access for Snyc Asnyc Disabled
Async Update Mode Disabled

PLC setting

* You can scroll this table sideways.

CPU MP2300
Communication unit 218IF-01
Register MW0-MW16383
Max scan time 1msec

Communication Performance

(sec)

* You can scroll this table sideways.

  1024 2048 4096 8192 16K 32K 64K 128K
Average 0.156 0.248 0.439 0.813 1.557 3.113 6.238 13.231
Max 0.169 0.259 0.435 0.856 1.622 3.262 6.496 16.537
Min 0.154 0.236 0.434 0.794 1.448 2.967 6.058 10.435

Results

In case of continuous Holding Register(MW), it is possible to get max 10,000 points per sec.

Comment

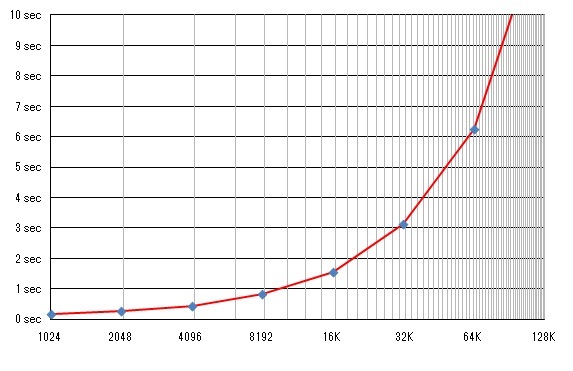

*Graph displays average time of ten times measurement.(1point = 1word)
*In case of 16K points access , Read 32K points by using 2 devices.( 16K point per 1 device).
*The result only means our examination, it doesn't guarantee performance.
